Summary:

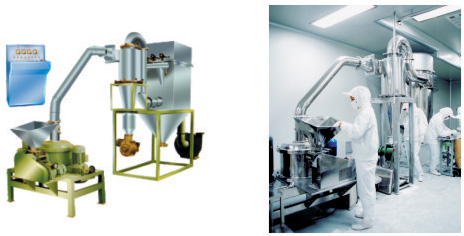

This series of micro mill consists of main engine, auxiliary engine, electric control of three parts, compact design, reasonable structure, with air separation type, without screen mesh.Inside the machine is equipped with classifiers, crushing, grading once completed.Negative pressure conveying the crushing operation timing cavity heat continuously, so is suitable for crushing of thermal sensitive material.The machine to adapt to the range, continuous production process, discharging granularity is adjustable.Can handle such as chemicals, food, medicine, cosmetics, dyestuff, resin, shell material and other material crushing and classification.
技術(shù)參數(shù):
|
Model
|
WFJ-15
|
WFJ-18
|
WFJ-36
|
|
production speed (kg/h)
|
10-200
|
20-450
|
60-1000
|
|
size of raw material to be fed (mm)
|
<10
|
<12
|
<15
|
|
size of raw material to be discharged (mesh)
|
80-320
|
80-450
|
80-450
|
|
Power (kw)
|
13.5
|
17.5
|
38
|
|
main revolution (r/min)
|
4500
|
4480
|
4000
|
|
dimension (mm)
|
4200×1200×2800
|
4700×1250×2900
|
9000×1500×3800
|
Note: 1, the above parameters in the table for material is different, so the production and discharge of fine degrees of difference is also large.
2, pulse dust catcher with air compressor by the user should bring along their own.
|
